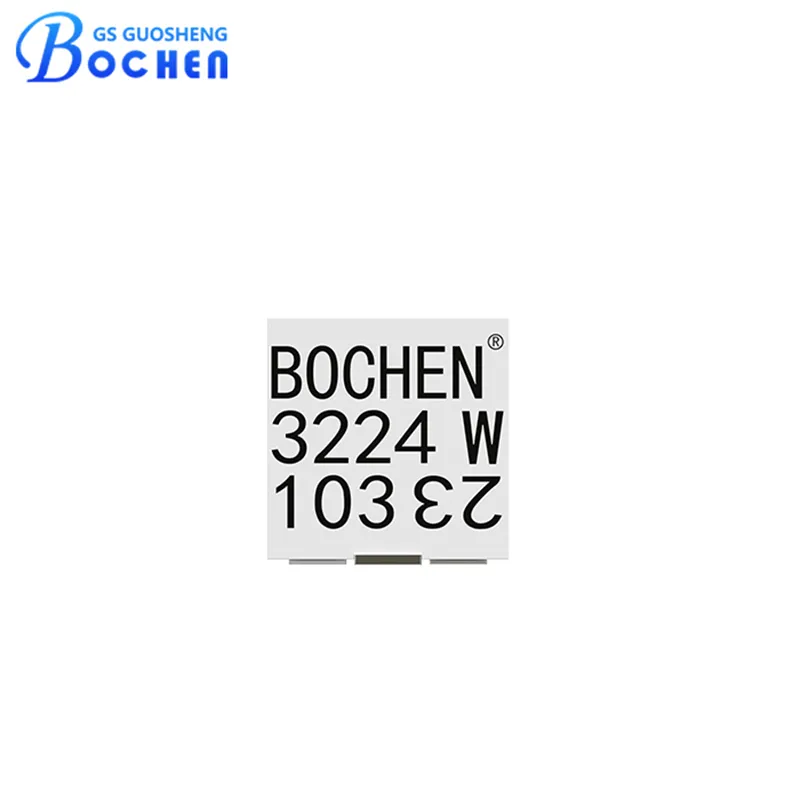

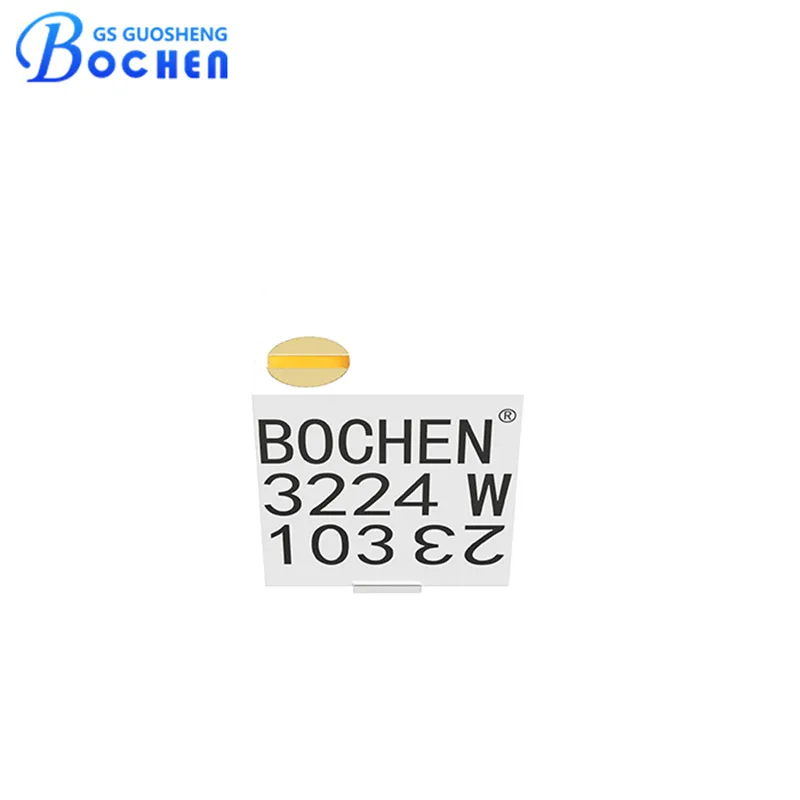

3224W Trimmer Resistor
The 3224W is a 4mm square multi-turn sealed cermet SMD trimmer resistor designed for high-precision industrial applications. Its sealed construction withstands board wash processing, ensuring reliability in automated assembly. With a top adjustment design and pick-and-place centering, this multi-turn trimmer offers stable performance in harsh environments. The device provides a nominal resistance range from 10Ω to 2MΩ with ±10% tolerance, making it suitable for precise circuit tuning where space and durability are critical.
Send Inquiry
Product Description
The 3224W is a 4mm square multi-turn sealed cermet SMD trimmer resistor designed for high-precision industrial applications. Its sealed construction withstands board wash processing, ensuring reliability in automated assembly. With a top adjustment design and pick-and-place centering, this multi-turn trimmer offers stable performance in harsh environments. The device provides a nominal resistance range from 10Ω to 2MΩ with ±10% tolerance, making it suitable for precise circuit tuning where space and durability are critical.
Product Parameter
Specifications
| Parameter | Value |
|---|---|
| Resistance Range | 10Ω – 2MΩ |
| Tolerance | ±10% (±5% optional) |
| Power Rating | 0.25W @ 70°C, 0W @ 150°C |
| CRV | ≤1%R |
| Effective Travel | 11±1 turns |
| Total Mechanical Travel | 12±1 turns |
| Insulation Resistance | ≥100MΩ @ 500Vdc |
| Dielectric Strength | 600 Vac for 1 min |
| Weld Heat Resistance | 260°C for 10 sec |
Dimensions
Outline: 4mm × 4mm square
Height: 2.55mm (max)
Adjustment type: Top adjustment
Mounting style: PCB mount, SMD/SMT
Termination: SMD pads
Weight: Approx. 0.2g
(For detailed mechanical drawing, please refer to the product datasheet.)
| Parameter | Value |
|---|---|
| Resistance Range | 10Ω – 2MΩ |
| Tolerance | ±10% (±5% optional) |
| Power Rating | 0.25W @ 70°C, 0W @ 150°C |
| CRV | ≤1%R |
| Effective Travel | 11±1 turns |
| Total Mechanical Travel | 12±1 turns |
| Insulation Resistance | ≥100MΩ @ 500Vdc |
| Dielectric Strength | 600 Vac for 1 min |
| Weld Heat Resistance | 260°C for 10 sec |
Dimensions
Outline: 4mm × 4mm square
Height: 2.55mm (max)
Adjustment type: Top adjustment
Mounting style: PCB mount, SMD/SMT
Termination: SMD pads
Weight: Approx. 0.2g
(For detailed mechanical drawing, please refer to the product datasheet.)
Product Feature
Product Advantages
Factory direct supply ensures competitive pricing with no middlemen. The 3224W features low CRV (≤1%R) and high stability over a wide temperature range (-55°C to +150°C). It boasts completed certificates like RoHS and REACH, guaranteeing quality assurance. With sufficient production capacity and short delivery times, plus professional after-sales support, this trimmer is ideal for volume orders. OEM and ODM services are available for custom requirements.
Applications
This trimmer is widely used in telecommunications equipment (base stations, routers) for signal calibration. It serves industrial controls (PLCs, automation gear) for precise parameter tuning. In medical instruments (patient monitors, diagnostic devices), it ensures accurate resistance settings. Automotive electronics (ECUs, sensors) rely on it for voltage and current calibration. Consumer electronics (audio devices, power supplies) benefit from its stable trimming, enhancing operational efficiency across sectors.
Key Features
4mm square SMD package with standard trimmer footprint
Multi-turn cermet element for high precision
Sealed to withstand board wash processing
Pick-and-place centering design with flush adjustment
Low contact resistance variation (≤1%R)
Operating temperature range: -55°C to +150°C
Temperature coefficient: ±100 ppm/°C
Mechanical life: 200 cycles with ΔR≤±3%
Packaging
Packaging specification: 500 pieces per reel (7-inch reel) or 1500 pieces per reel (13-inch reel). The trimmer is shipped in anti-static, environmentally friendly materials compliant with RoHS standards. Each reel is labeled with model number, quantity, and date code. Custom packaging options are available upon request.
Factory direct supply ensures competitive pricing with no middlemen. The 3224W features low CRV (≤1%R) and high stability over a wide temperature range (-55°C to +150°C). It boasts completed certificates like RoHS and REACH, guaranteeing quality assurance. With sufficient production capacity and short delivery times, plus professional after-sales support, this trimmer is ideal for volume orders. OEM and ODM services are available for custom requirements.
Applications
This trimmer is widely used in telecommunications equipment (base stations, routers) for signal calibration. It serves industrial controls (PLCs, automation gear) for precise parameter tuning. In medical instruments (patient monitors, diagnostic devices), it ensures accurate resistance settings. Automotive electronics (ECUs, sensors) rely on it for voltage and current calibration. Consumer electronics (audio devices, power supplies) benefit from its stable trimming, enhancing operational efficiency across sectors.
Key Features
4mm square SMD package with standard trimmer footprint
Multi-turn cermet element for high precision
Sealed to withstand board wash processing
Pick-and-place centering design with flush adjustment
Low contact resistance variation (≤1%R)
Operating temperature range: -55°C to +150°C
Temperature coefficient: ±100 ppm/°C
Mechanical life: 200 cycles with ΔR≤±3%
Packaging
Packaging specification: 500 pieces per reel (7-inch reel) or 1500 pieces per reel (13-inch reel). The trimmer is shipped in anti-static, environmentally friendly materials compliant with RoHS standards. Each reel is labeled with model number, quantity, and date code. Custom packaging options are available upon request.
